Cantilever bridge
construction machine.
Integrated formwork and working platforms for cast-in-place bridge segments.
Formwork.
Structure.
Working access.

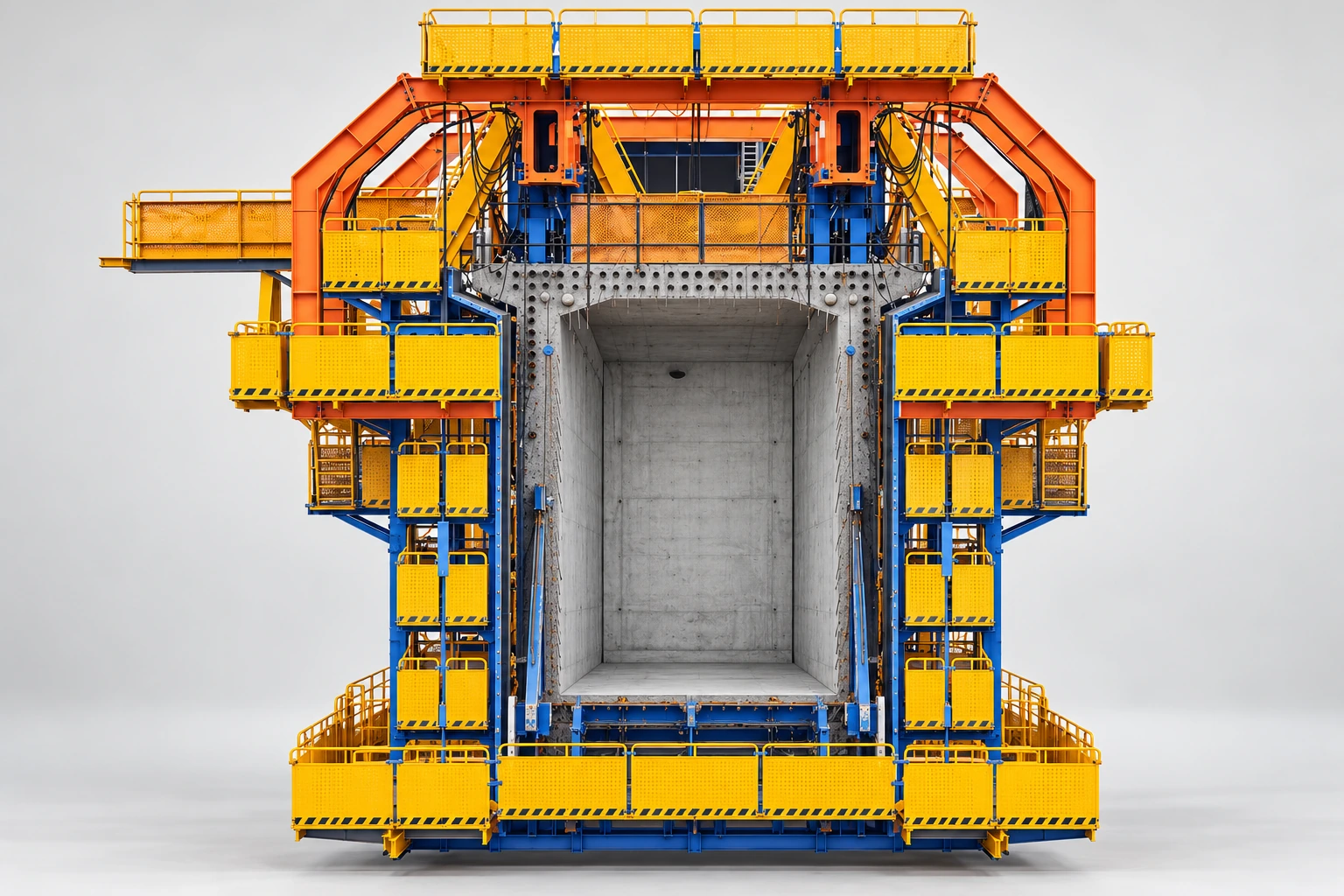

An integrated equipment arrangement for cantilever casting of bridge segments.
- Steel frame & formwork
- Red-orange frames and blue supporting steelwork surround the box-girder working area.
- Multi-level working platforms
- Side, front and lower platforms provide the working arrangement shown in the supplied photographs.
- Access & project interfaces
- Stairs, guardrails and platform layouts are developed alongside the section geometry and construction method.

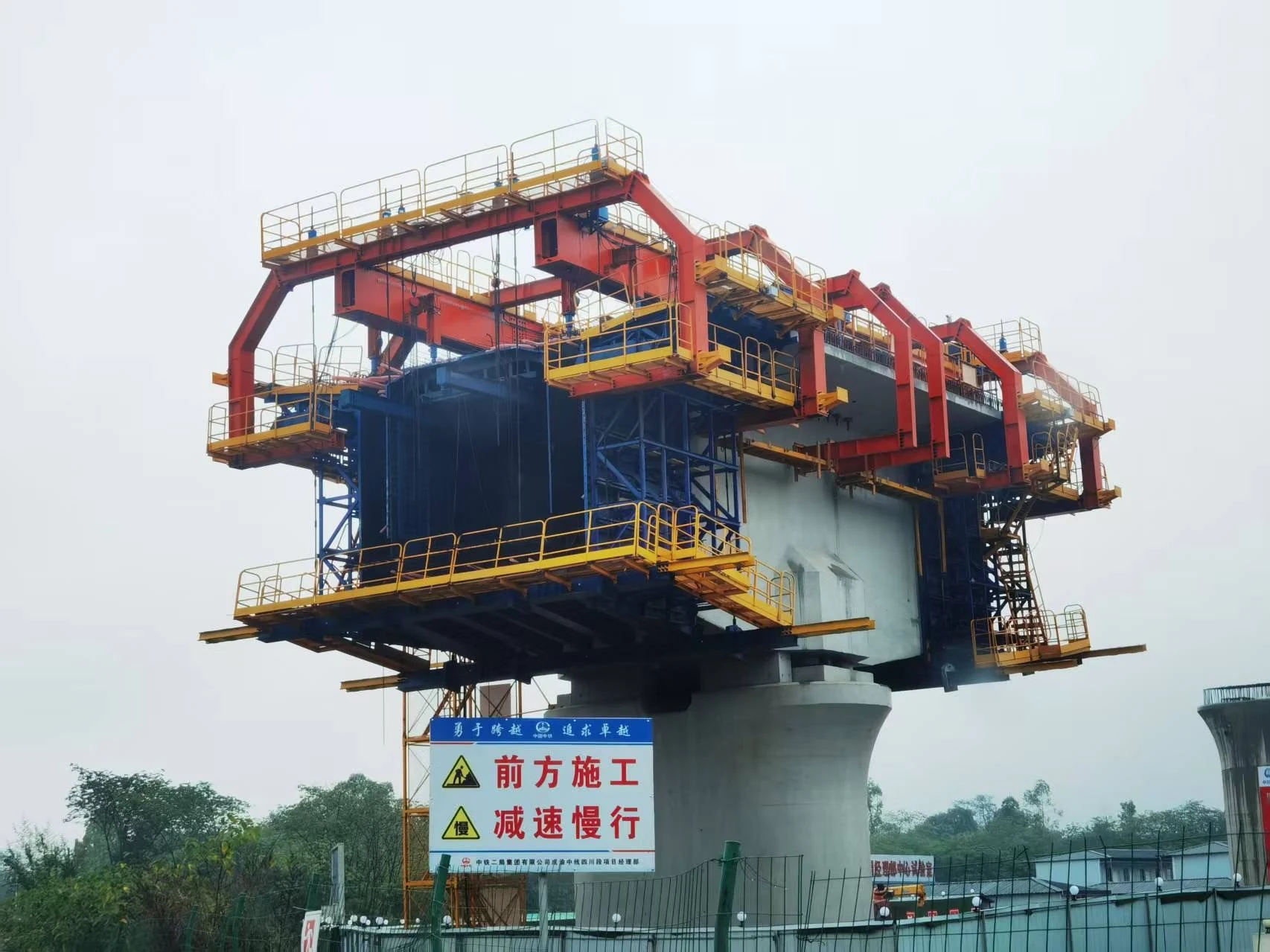

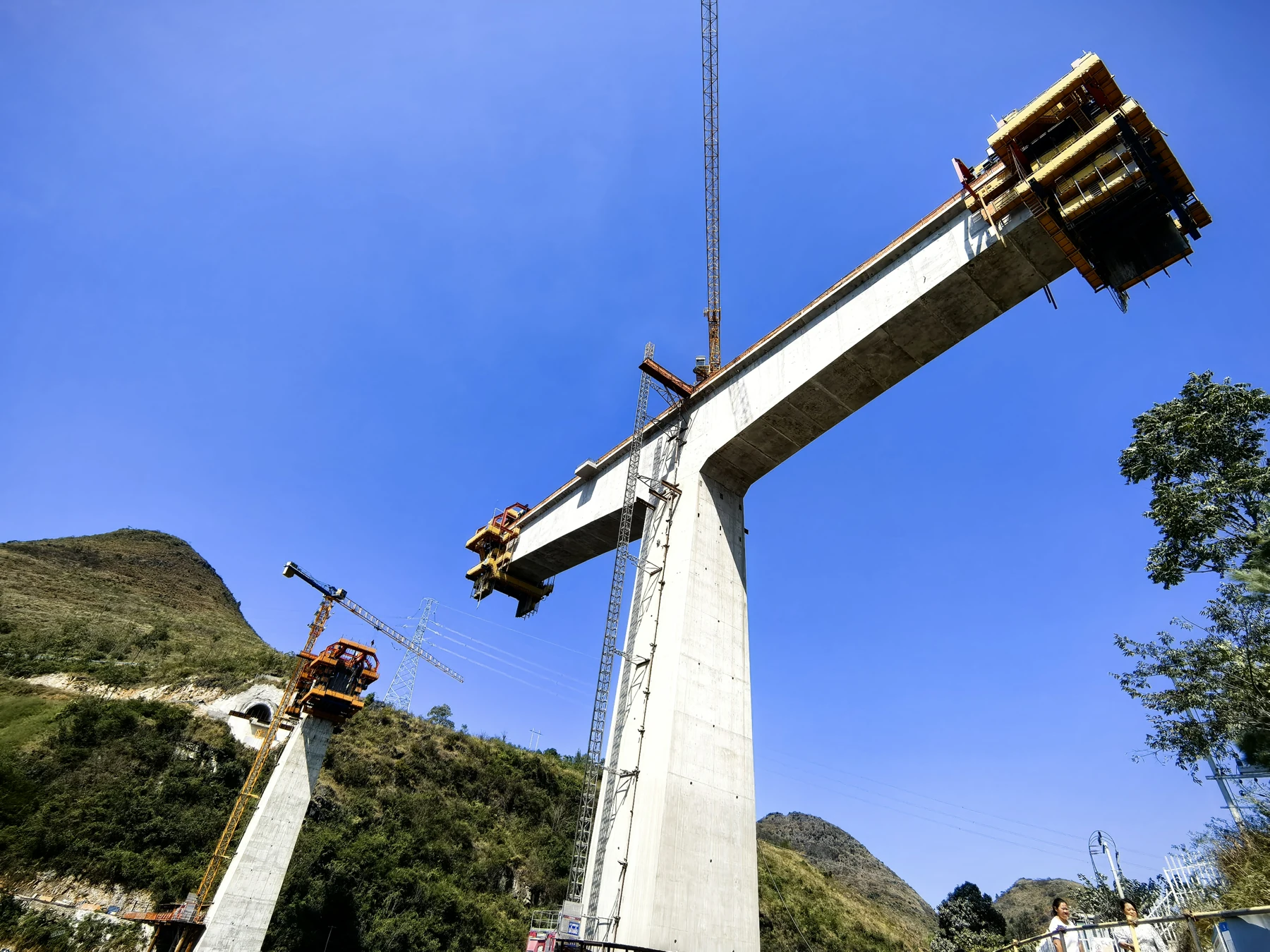

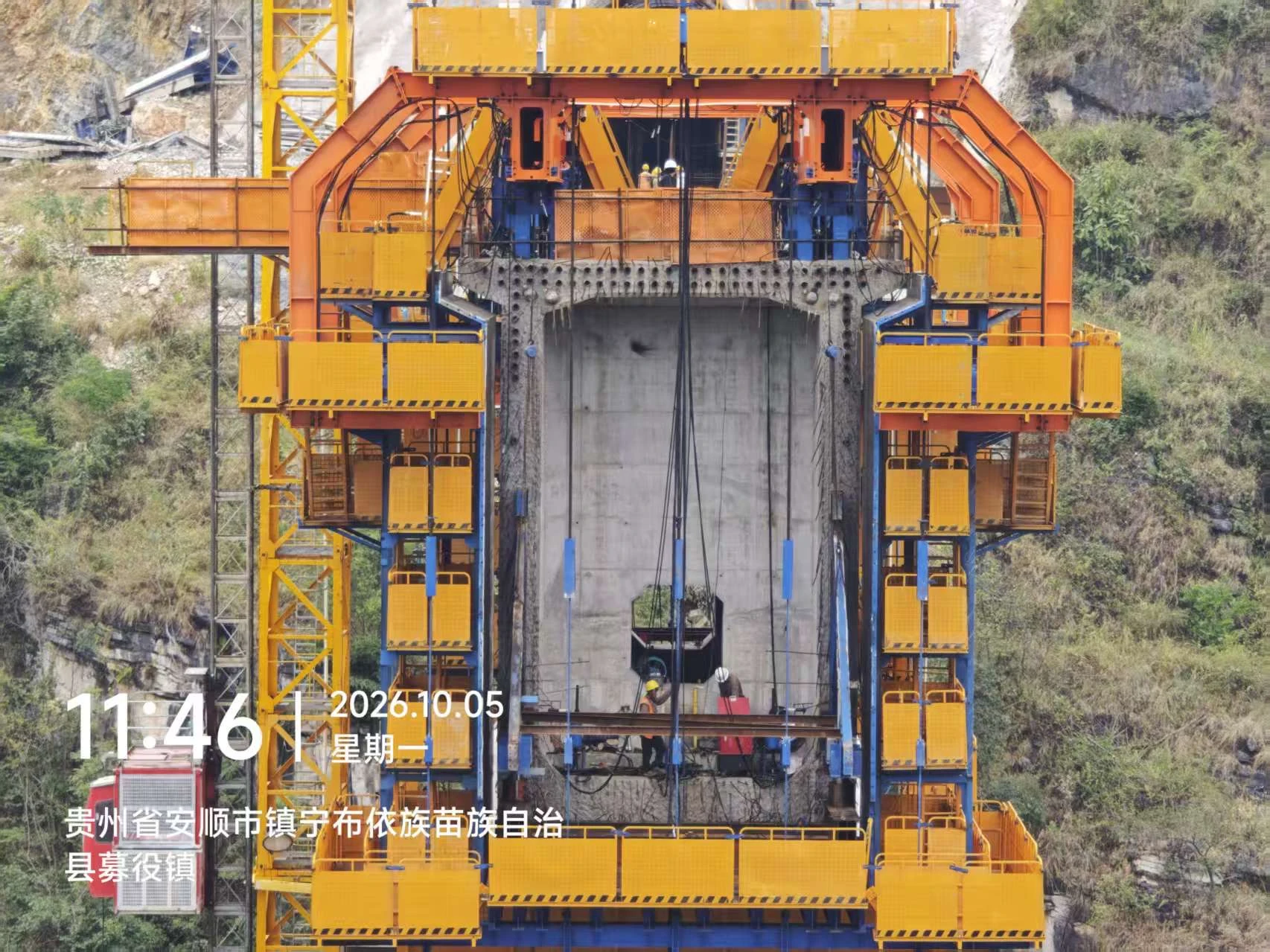

The equipment
on site.
Three views of the machine and its construction setting. Select a photograph to explore the equipment in more detail.
Supplied site photographs. Project identity and contractual scope are not specified.
A closer look,
ready to share.
Product renderings, site photographs and the details to prepare for a project discussion.
4 pages · English · Product overview
Start with your
bridge section.
Share your drawings and construction requirements with our Singapore team. Equipment dimensions, loads, controls and supply scope are confirmed through project-specific engineering and quotation.
Prepare a project enquiry- 01Box-girder geometry
- Cross-sections, deck width, girder depth and segment drawings.
- 02Construction sequence
- Segment lengths, pour sequence and concrete placement method.
- 03Engineering interfaces
- Design loads, support and anchorage details, and acceptance criteria.
- 04Site & supply scope
- Access, installation, controls, inspection documents and delivery requirements.
Explore more equipment.
View the portfolio
PRODUCT RENDERINGTunnel Lining Trolleys
Secondary lining formwork for your tunnel profile, pour length and construction sequence.
Wet-mix Shotcrete Machines
Mechanised wet-mix spraying for tunnel support operations.

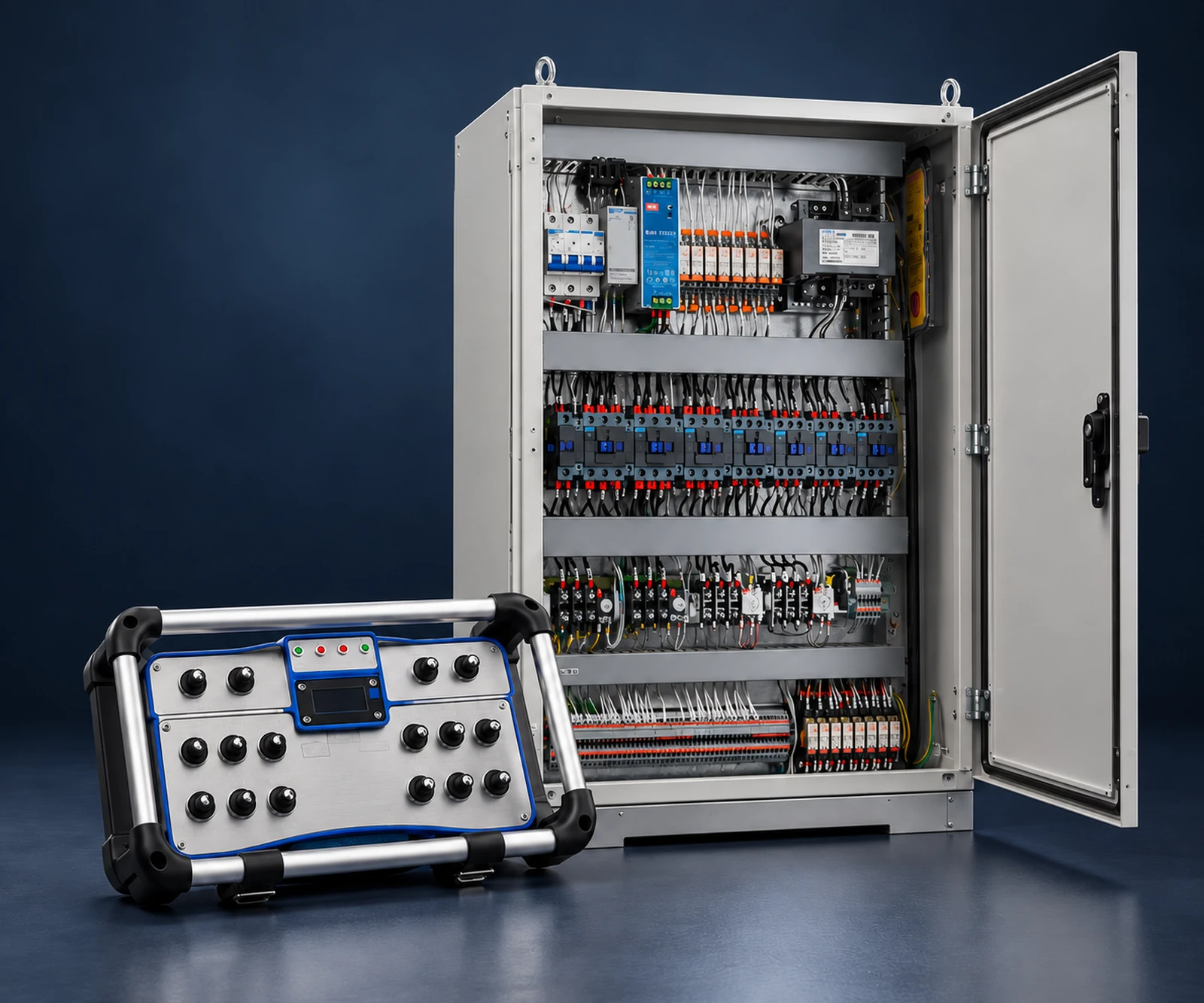

Electrical & PLC
